As a part of CSR [Corporate Social Responsibility] Project, Multi Commodity Exchange of India Ltd. is focused on creating a positive social and environment impact by leveraging its resources and expertise in CSR thrust project like : BioToilet to Rural Area School, Soil Testing Initiative, Organic Farming/Vermi Compost Fertilizer Project, Gramin Suvidha Kendra Programme, Development of Watershed Programme, Drip Irrigation Programme, Deepening/Renovation of Dug Well, and many other activities.
To Promote the preventive health care and improving sanitation at school and to create awareness on health and sanitation among students in rural areas. MCX India Ltd. has installed the Biotoilet in various school of Uttar Pradesh State.
School List of Biotoilet Installed under CSR Project Activity of MCX India Ltd are as :
1] Siddheshwar Sikkhaniketan at Village Birnava, Deeh, Nasirabad, Raebareli District.
2] Shree Mohan Smarak Public School at Village Peedhi, Deeh, Nasirabad, Raebareli District.
3] Pandit Dinanath Mishra Inter College at Village Lalganj, Lalganj, Raebareli District.
4] Srimati Ramadevi Kumari Sobhadevi at Village Lalganj, Lalganj, Raebareli District.
5] Primary School Kurha at Village Kurha, Chhatoh, Jais, Raebareli District.
6] Primary School Kanta at Village Kanta, Chhatoh, Jais, Raebareli District.
7] Jharkhandeswar Vidyapeeth at Village Matka, Salon, Raebareli District.
8] Swami Vivekanand Inter College at Village Suchi, Salon, Raebareli District.
9] Radhakrishna Baal Vidya Mandir at Village Chauhatta, Dalmau, Raebareli District.
10] Naveen Vidya Mandir at Village Kusuwapur,Dalmau Raebareli District.
11] Gyan Vidhya Mandir at Village Thulwasa, Maharajganj , Raebareli District.
12] Shree Hans Vidhyapeeth at Village Bawanbujurg Balla, Maharajganj, Raebareli District.
13] Adarsh Baburam Junior High School at Village Naranpur Akodiya,Unchahar, Mustafabad Raebareli District.
14] Samrat Ashok Shikhaniketan at Village Sabaiya Purbaar,Unchahar, Mustafabad, Raebareli District.
15] Seema Public School at Village Bhamori, Sardhana, Meerut District.
16] Cambridge Public School at Village Doulatpur, Sardhana, Meerut District.
Biotoilet installation work is carried out by Mechwat Technologies Pvt. Ltd. on behalf of MCX India Ltd. Biotoilet installation in school created awareness in rural areas about sewage water treatment and utilization for irrigation purpose. Biotoilet treated water utilization for irrigation promote the organic farming and nutrient water stability in agriculture land.
Introduction of BioToilet
Bio-Toilets are a super structure of toilet with anaerobic biodegradation of organic waste by unique microbial consortium and works at a wide temperature range. Organic solid waste convert to Gases Like Methane, Carbon Dioxide and Digested organic nutrient contain residual water which will be further utilize for agriculture propose or else treated further for secondary treatment known as Reed Bed System.
Main Objective of Biotoilet Application for Human Waste Management Are :
- No Energy Dependence.
- Eliminate the maintenance of soak pit work & discharge of sewage waste.
- Prevent the soli erosion and increase the ground water stability by eliminating the sulphate gases generation and water utilization for gardening/irrigation.
- To promote the organic technology for waste utilization
Salient Future of Biotoilet :
- Disposes human waste in a 100% eco-friendly manner.
- Continuous biological process which leads to maintenance free of sewage treatment process.
- Does not require any septic tank or sewage collection facility.
- Existing septic tank can be replace by Bio-digester in existing public & domestic toilets.
- Routing chemical do not harm the system.
- Independent on the limited and costly conventional energy resources.
Bio-Culture Configuration :
Bio-culture additives are Feeding micro-organisms(e.g. bacteria) and macro-organisms(e.g. plants & animals). Its extract of Ascophyllum nodosum which one of the most nutrient rich vegetables on the planet containing life sustaining elements like organic iodine and organic germanium plus complex compounds like oligo sachharides and poly uronica acids-in additional full range of vitamins, minerals and trace elements at levels way above those of any land plants.
Advantages:
- Bio-Availability : Nutrients additives are chelated, colloidal, optimally balanced and easily absorbed.
- Bio-Activity : These additives are natural and superior bacterial culture media, restoring microbiological life too organism and eco-systems. When bacterial culture is exposed to nutrients, bacteria begin to free feed & thrive , producing a host of enzymes which then continue feeding and speeding biological processes. This bacterial enzyme activity supports and protects life in complex and profound ways. Bio-Culture works with naturally occurring , conventional organisms, aerobic and anaerobic. These additives are true pro-biotics, dramatically improving digestion efficiencies and decomposition rates through the entire digestion/decomposition process – completing these processes while eliminating odours with biological ion exchange capacity.
- Protecting organisms – Naturally occurring alginates + trace elements protect organisms from environmental toxin-including protecting the health of the sensitive, beneficial families of bacterial with living systems. Ascopyllum nodosum is proven to sequester heavy metals without further processing or release. Our product actually blocks heavy metals in soils and waste product preventing assimilation plants and animals.
Design Qualification of Biotoilet for Multi Commodity Exchange of India Ltd.
| S.No. | Features | Detail |
| 1 | Size (W x D x H) in Ft. | [(3.5 x 3.5 x 7.5)Ft. x 3 Nos |
| 2 | Material to be used | 12mm PVC Foam Sheet |
| 3 | Thickness of Sheet | 12mm PVC Foam Board |
| 4 | Moulded /Angle Channel based ? | Angle Channel based |
| 5 | Biotoilet Basement | 650 mm Civil Platform with Two Step Stair and Tiles Work from ground level |
| 6 | Biotoilet Ceiling | 12 mm Solid PVC Foam Sheet |
| 7 | Side Wall of Biotoilet Structure | 12 mm Solid PVC Foam Sheet with MS Square Pipe Fittings Work; Water proofing silicon fittings |
| 8 | Electric work scope | One Lamp; Switch Board for Exhaust fan & Lamp in each block |
| 9 | Ventilation System | 250mm Crompton Exhaust Fan in each block |
| 10 | Door | Size : [2.5 x 6.5 ] ft ; MOC : 24 mm PVC Foam Board ; Density – 0.58 |
| 11 | Door kit | SS Aldrop, Stopper , Handle and SS Mizagra included in each block. |
| 12 | Water Line Piping | UPVC Piping with water tape in each block included with piping connection of water tank |
| 13 | Drain Line Piping | PVC Piping drain work for each block and connection with biodigester. |
| 14 | Water Tank | Triple Layer HDPE 500 Liter Tank Included at each location |
| 15 | Water Tank Stand | [ 35 x 35 x 5 ] mm MS Angle Stand having [ 4 x 4 x 6] Ft Height at each location |
| 16 | Wash Basin | 1 Nos |
| 17 | Water Tap | PVC Polo Tap |
| 18 | Door | 25 mm Square pipe along with 15 mm PVC Door & PVC Angle Frame. |
| 19 | Roofing | 25 MM MS Square Pipe frame along with both Side 12mm sheet fitting |
| 20 | Water Tank | Client’s Scope |
| 21 | Piping Work | UPVC & PVC Piping Work |
| 22 | Biodigester | Capacity will be given as per given location detail on mail; 15mm Thick HDPE Biodigester/Civil Construction. |
| 23 | Bioculture | 3 Liter to 5 Liter |
| 24 | Mirror | Not Include |
| 25 | Warranty | We ensure five year warranty for manufacturing defect of material and operation of Biodigester |
| 26 | Installation Period | 7 Days required for installation completion work for each location |

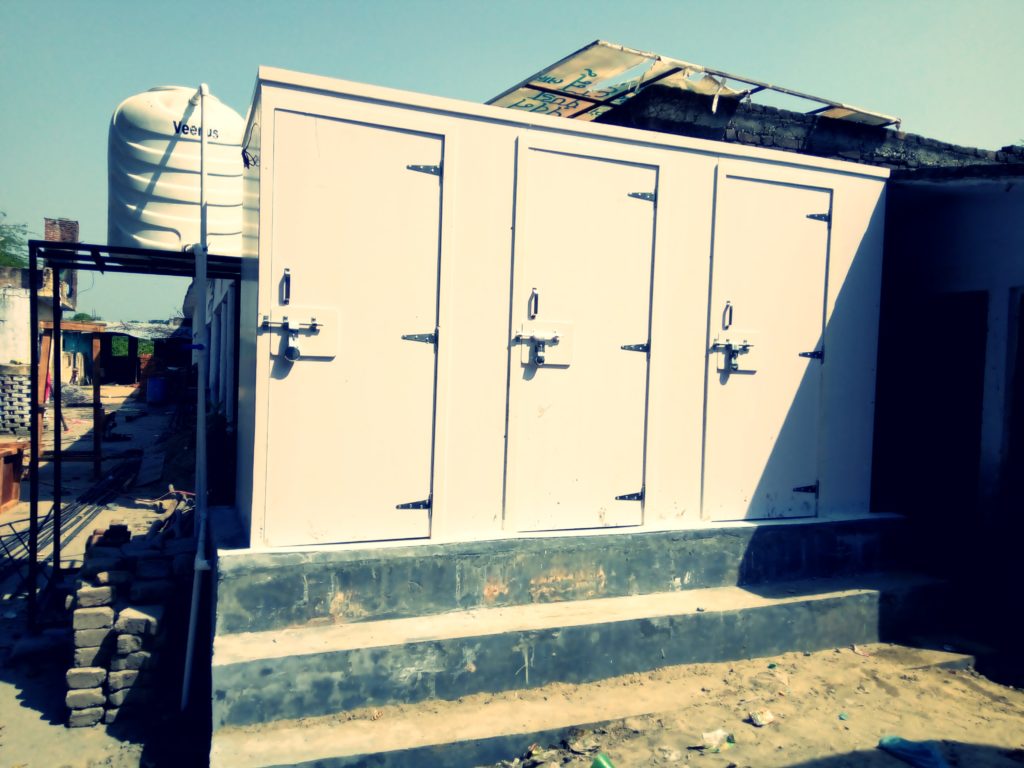

Detail Photographs of Biotoilet Installed under CSR Activity of MCX India Ltd are as :

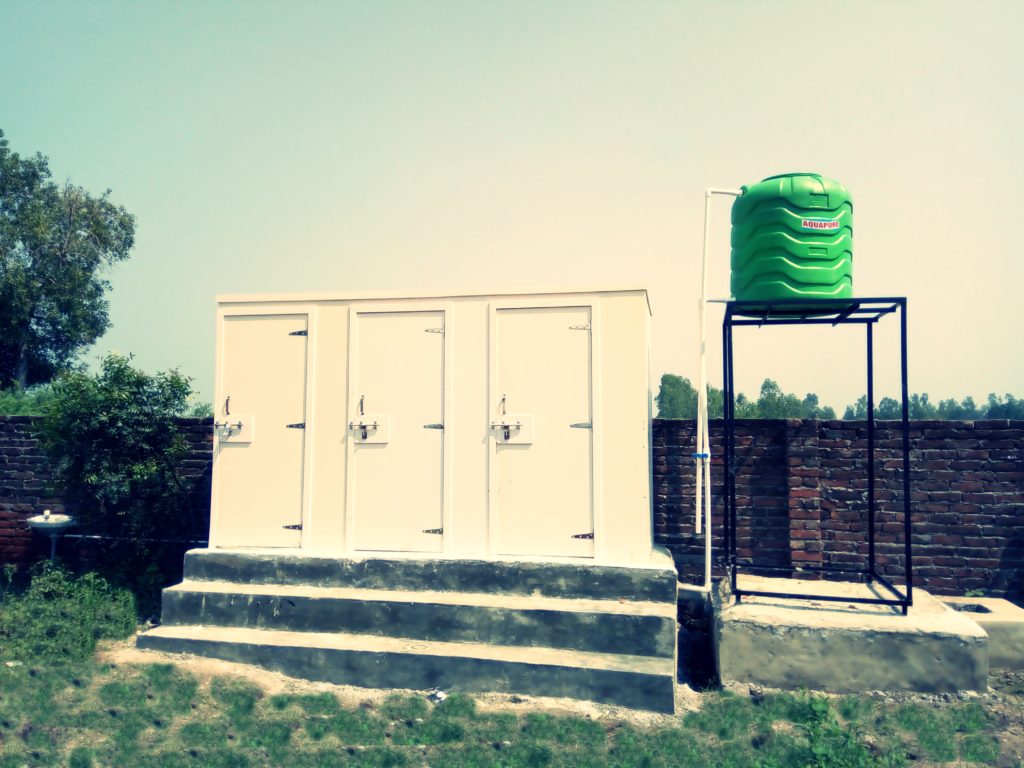

1] Siddheshwar Sikkhaniketan at Village Birnava, Deeh, Nasirabad, Raebareli District.

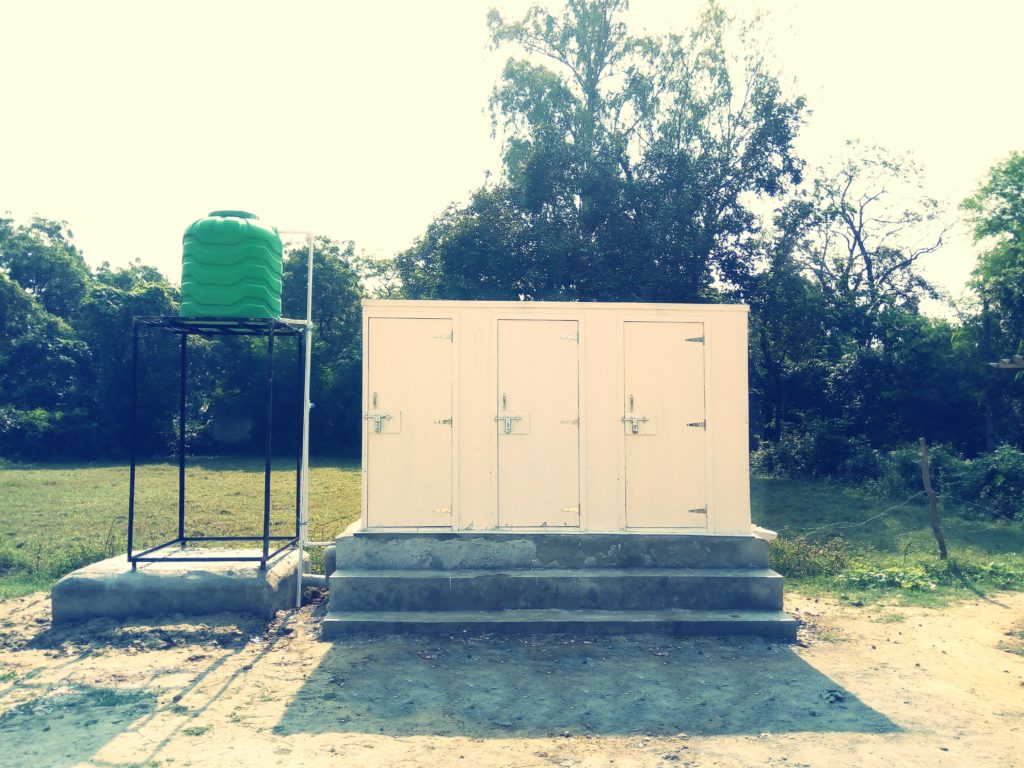

2] Shree Mohan Smarak Public School at Village Peedhi, Deeh, Nasirabad, Raebareli District.

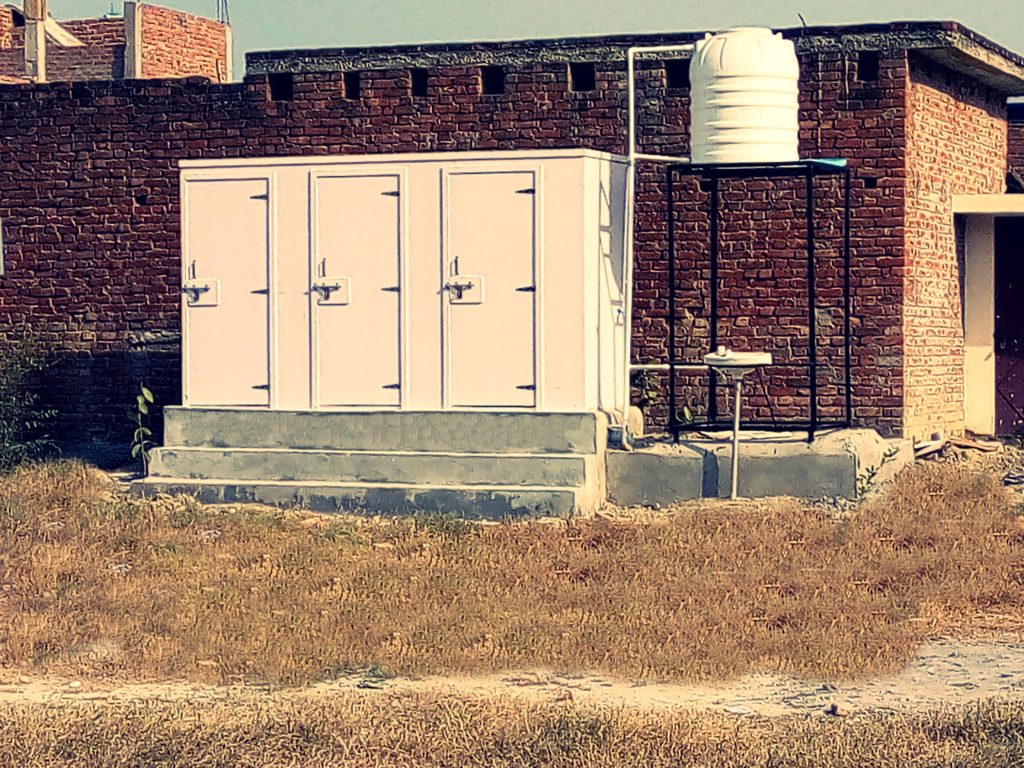

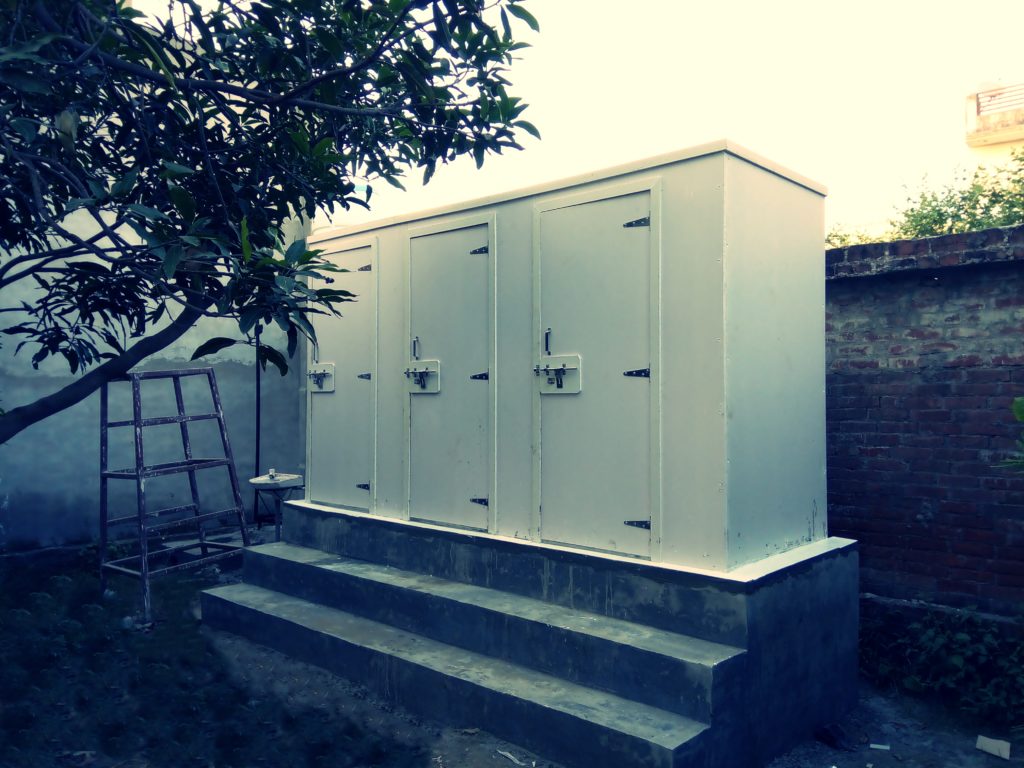

3] Pandit Dinanath Mishra Inter College at Village Lalganj, Lalganj, Raebareli District.
4] Srimati Ramadevi Kumari Sobhadevi at Village Lalganj, Lalganj, Raebareli District.

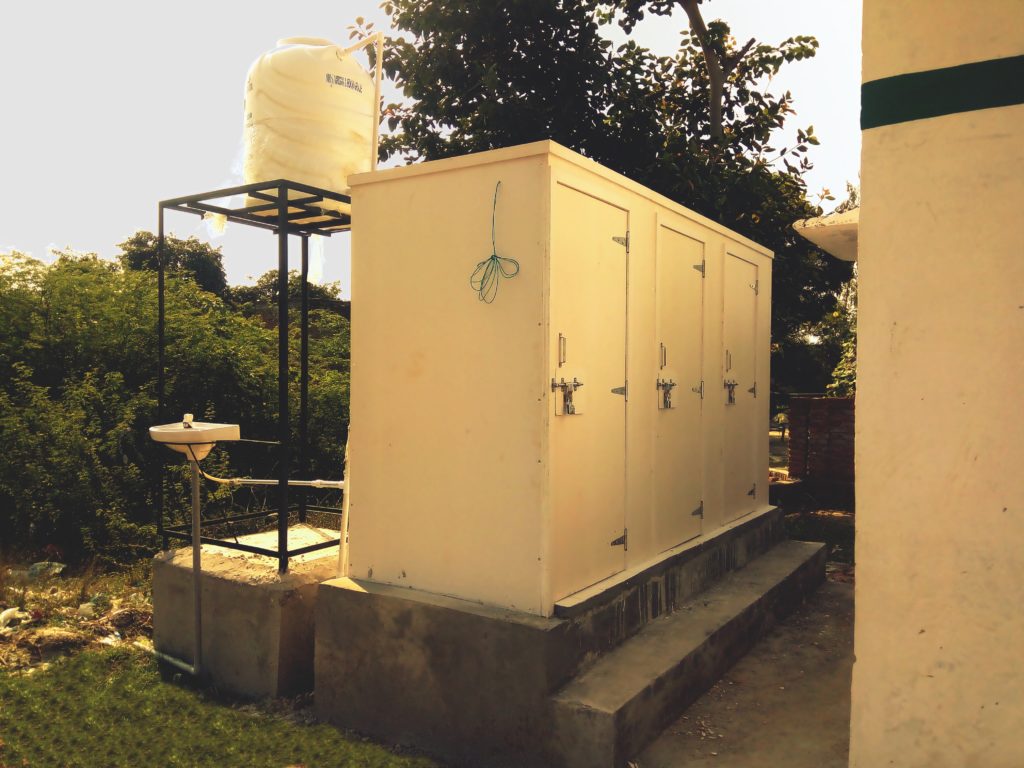

5] Primary School Kurha at Village Kurha, Chhatoh, Jais, Raebareli District.

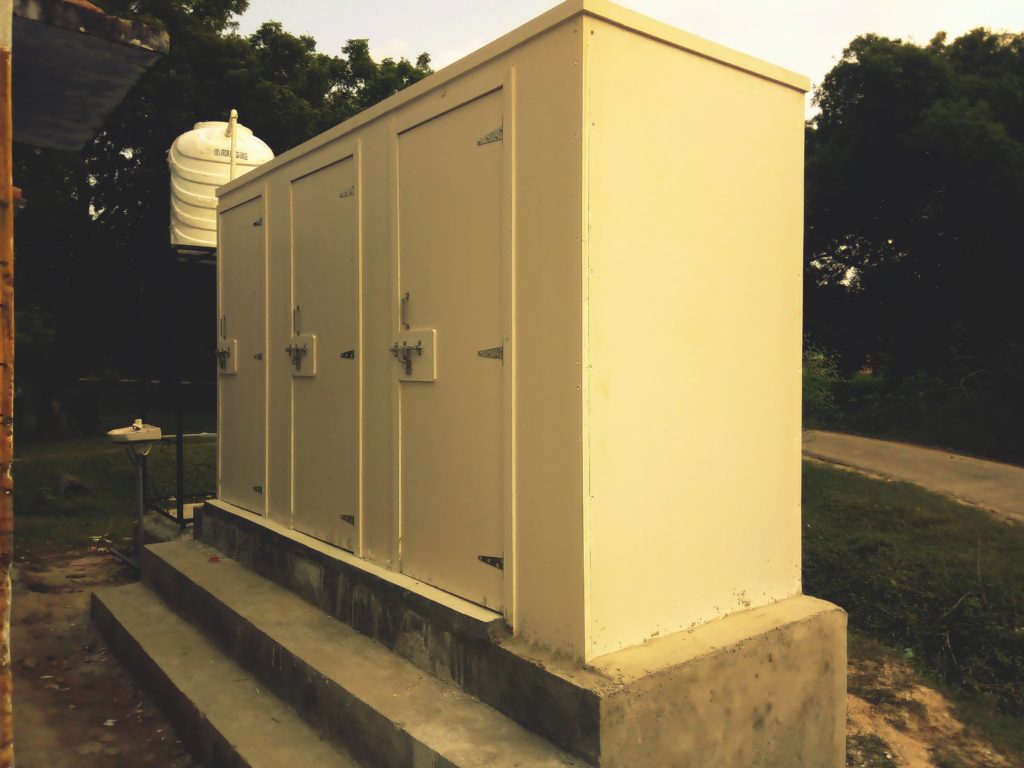

6] Primary School Kanta at Village Kanta, Chhatoh, Jais, Raebareli District.

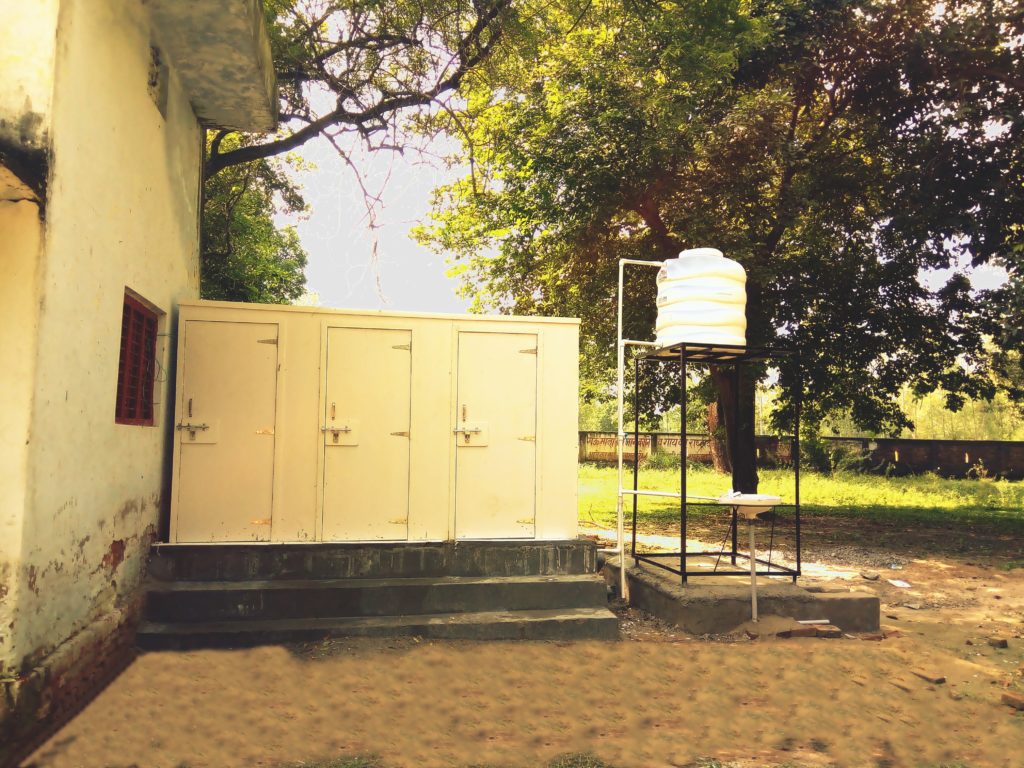

7] Jharkhandeswar Vidyapeeth at Village Matka, Salon, Raebareli District.

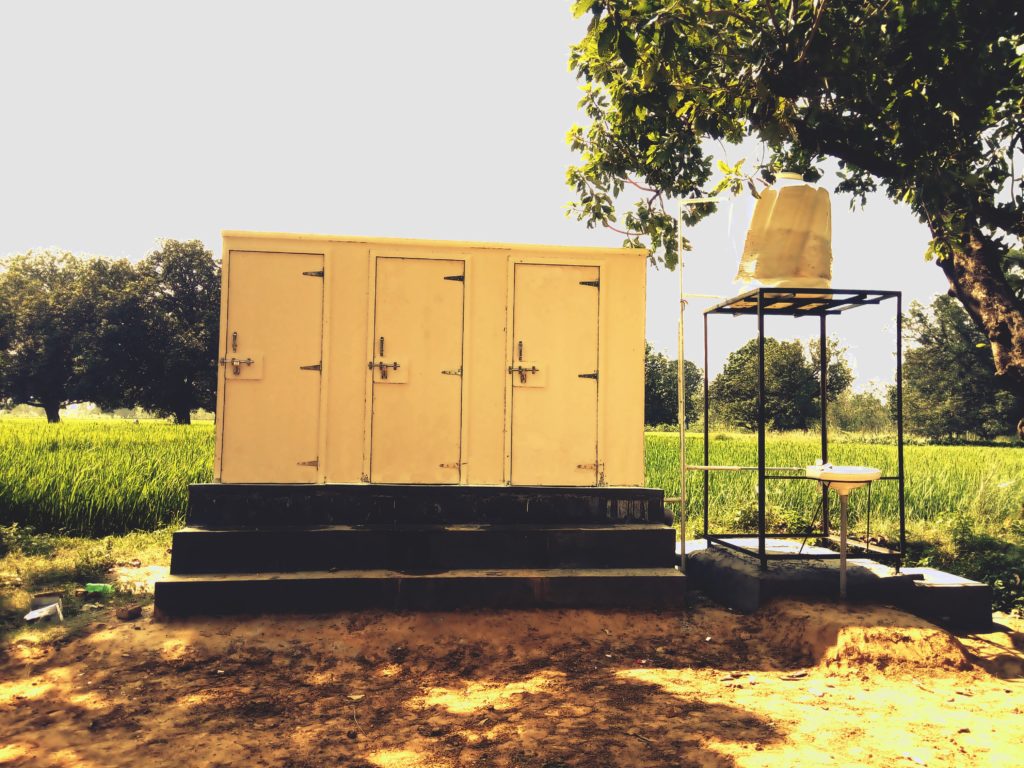

8] Swami Vivekanand Inter College at Village Suchi, Salon, Raebareli District.
9] Radhakrishna Baal Vidya Mandir at Village Chauhatta, Dalmau, Raebareli District.

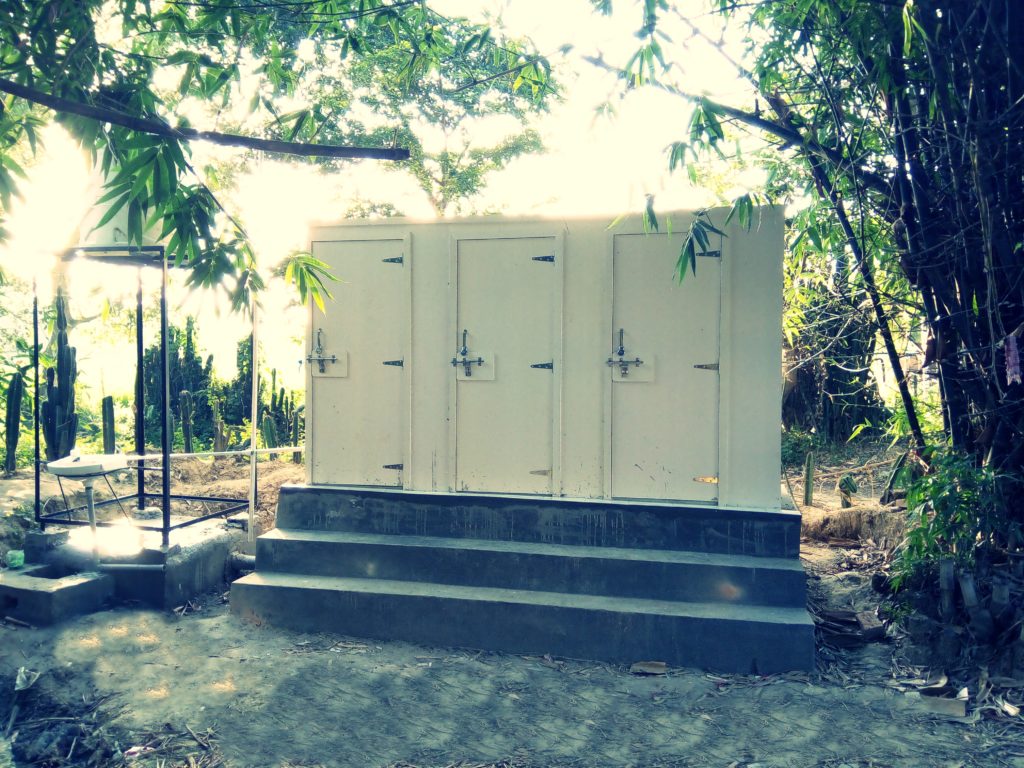

10] Naveen Vidya Mandir at Village Kusuwapur,Dalmau Raebareli District.

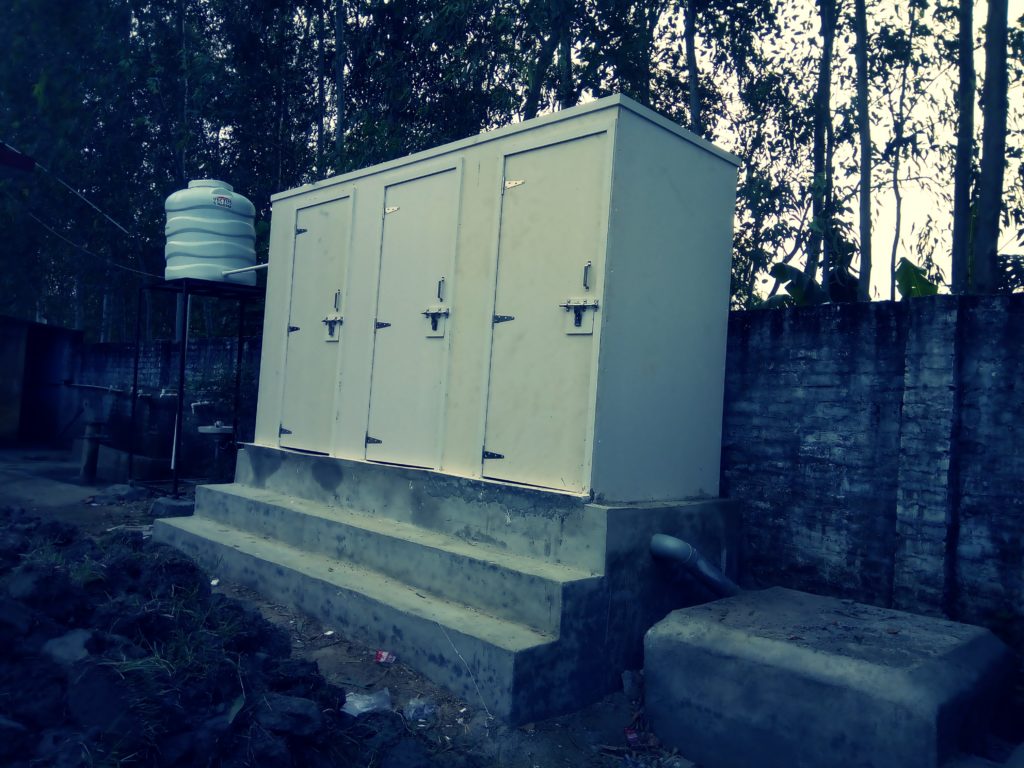

11] Gyan Vidhya Mandir at Village Thulwasa, Maharajganj , Raebareli District.

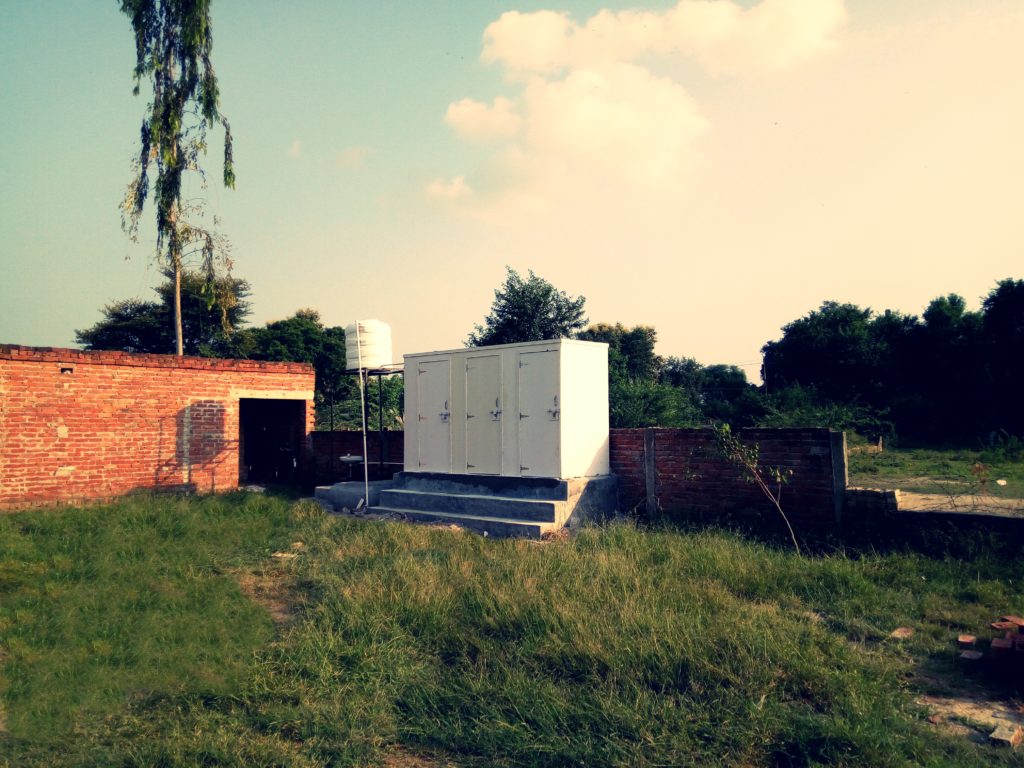

12] Shree Hans Vidhyapeeth at Village Bawanbujurg Balla, Maharajganj, Raebareli District.

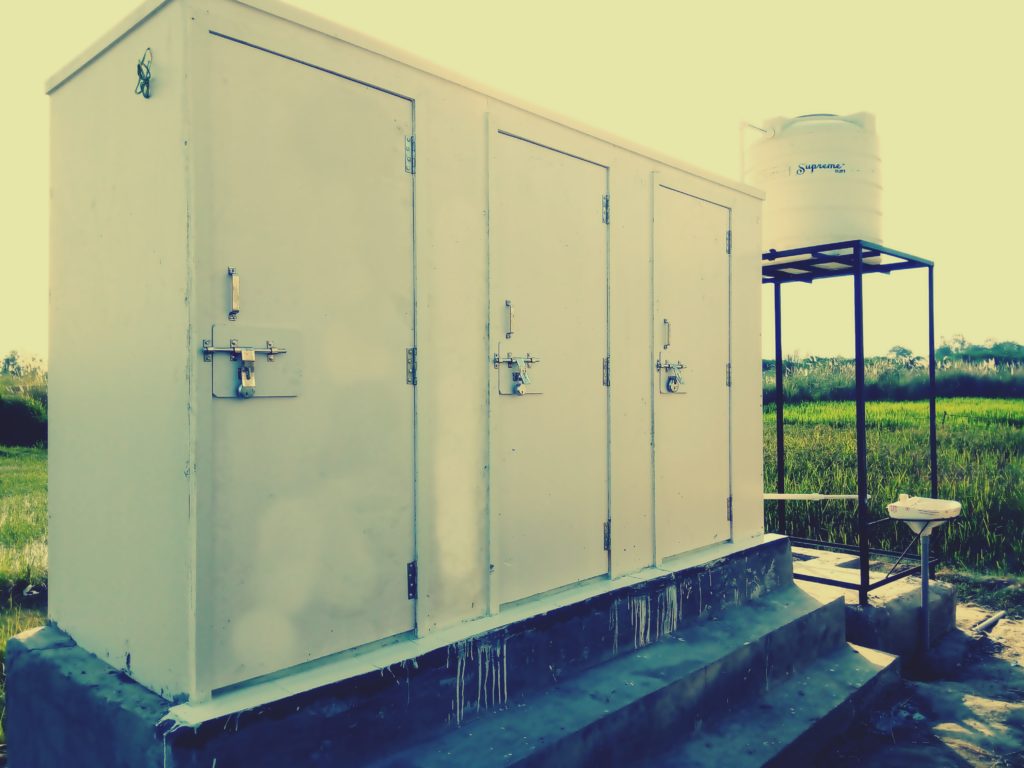

13] Adarsh Baburam Junior High School at Village Naranpur Akodiya,Unchahar, Mustafabad Raebareli District.

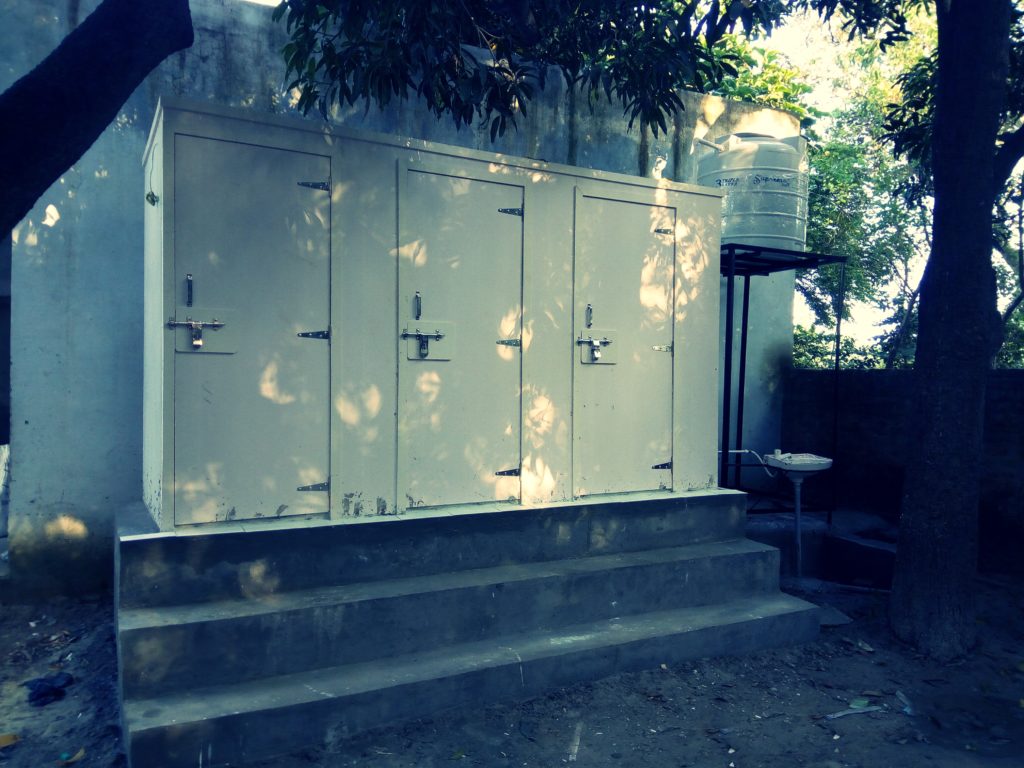

14] Samrat Ashok Shikhaniketan at Village Sabaiya Purbaar,Unchahar, Mustafabad, Raebareli District.
15] Seema Public School at Village Bhamori, Sardhana, Meerut District.

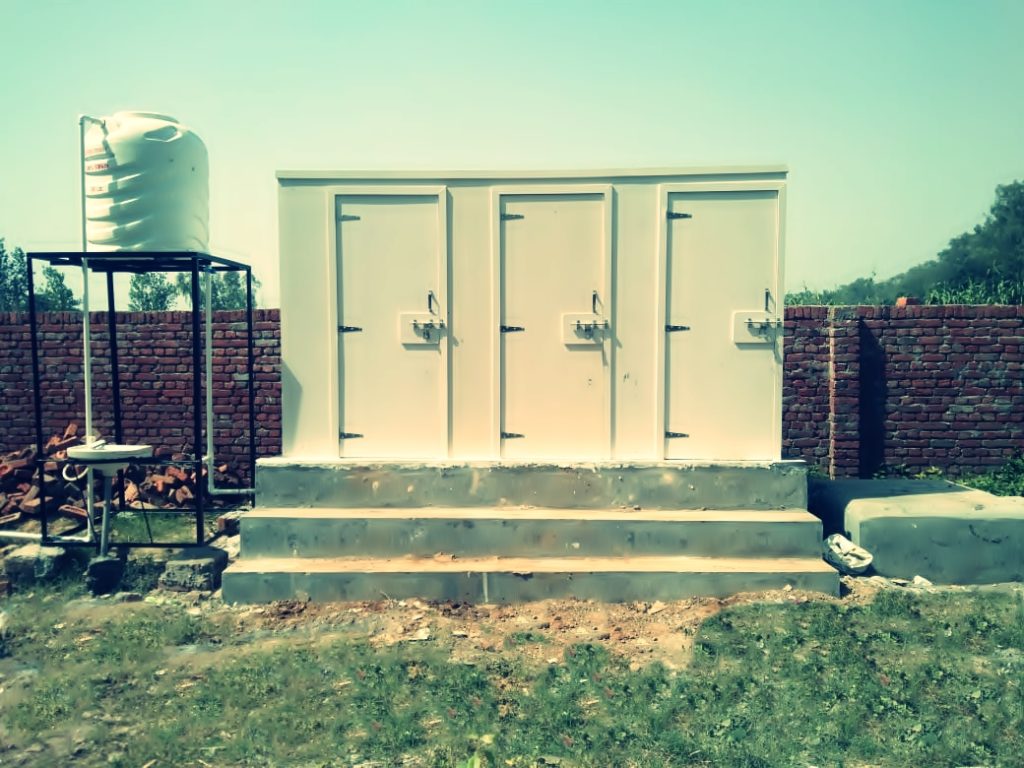

16] Cambridge Public School at Village Doulatpur, Sardhana, Meerut District.
